Reyocto OxyBLU Smart Aquaculture & IoT Monitoring Solutions

About Reyocto OxyBLU

Reyocto OxyBLU Smart Aquaculture & IoT Monitoring Solutions

Reyocto OxyBLU is an intelligent IoT-powered aquaculture monitoring solution designed to automate pond management through real-time water quality monitoring, AI-driven aerator control, and remote cloud connectivity. From predictive dissolved oxygen management to industrial-grade remote data logging, OxyBLU solutions help improve productivity, reduce operational costs, optimize energy consumption, and enable smarter, data-driven aquaculture operations.

OxyBLU Products We Offer

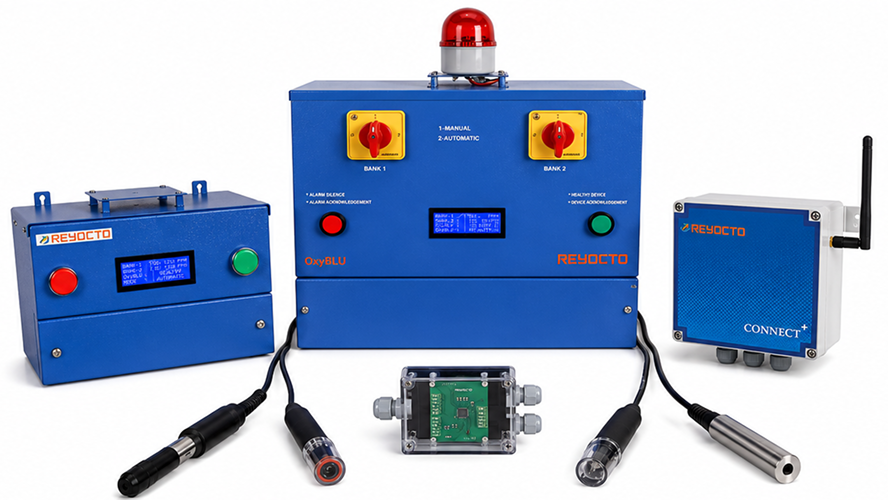

Reyocto OxyBLU

Product Description

The Reyocto OxyBLU is an intelligent IoT-based aquaculture automation system designed to continuously monitor pond water quality and automatically manage aerators for optimum dissolved oxygen levels. Powered by Machine Learning, Cloud Connectivity, and Process Automation, OxyBLU analyzes real-time pond conditions, predicts future oxygen demand, and automatically controls aerators to improve pond health, reduce energy consumption, and maximize farm productivity. With mobile app connectivity, real-time alerts, onboard LCD display, and support for multiple water quality parameters, OxyBLU provides complete remote pond management for modern aquaculture operations.

Key Features

AI-powered dissolved oxygen prediction using self-learning algorithms.
Automatic aerator control for maintaining optimum DO levels.
Continuous monitoring of DO, pH, water temperature, and DO saturation.
Supports Optical (OPTOD) and Polarographic DO sensors.
Cloud-connected monitoring with Android and iOS mobile applications.
Supports automatic blower control for future expansion.
Controls aerator loads up to 40 HP.
Wide operating voltage with built-in under and over-voltage protection.
Detects aerator faults and over-current conditions with instant alerts.
Built-in backup power for up to 12 hours.
Automatic generator start/stop based on aeration demand.
Secure cloud communication using two-level security protocols.
SMS notifications and mobile alerts for critical events.
Integrated LCD display for on-site monitoring.
Bypass mode for manual aerator operation.
OTA (Over-the-Air) firmware updates without user intervention.
Supports Auto Feeder integration.
Custom-built solutions for single or multiple pond management.

Technical Specifications

Measured Parameters:

Dissolved Oxygen (DO)
DO Saturation
pH
Water Temperature

Sensor Options:

Optical (OPTOD) DO Sensor
Polarographic DO Sensor

Control Capacity:

Supports Aerator Loads up to 40 HP
Automatic Blower Control Ready

Operating Voltage:

90 – 300 VAC

Power Backup:

Up to 12 Hours

Connectivity:

Cloud Connectivity
EDGE (GPRS)
SMS Alerts
Android & iOS Mobile App

Display:

Integrated LCD Display

Protection Features:

Under Voltage Protection
Over Voltage Protection
Aerator Fault Detection
Over Current Detection
Generator Auto ON/OFF

Additional Features:

OTA Firmware Updates
Manual Bypass Mode
Auto Feeder Support
Two-Level Secure Communication

Model No.	RNGpHN-01
Measuring Principle	Electrolyte
Measuring Range	0-14 pH, 10°C-110°C
Accuracy	0.1 pH
Resolution	0.001 pH
Working Condition	0-110°C

Ideal Applications

The Reyocto OxyBLU is ideal for:

Shrimp farms
Fish farming
Aquaculture ponds
Intensive aquaculture systems
Commercial hatcheries
Smart aquaculture projects
Multi-pond farm management
Automatic aerator control
Water quality monitoring
Precision aquaculture solutions

Model No.	RNGpHN-01
Measuring Principle	Electrolyte
Measuring Range	0-14 pH, 10°C-110°C
Accuracy	0.1 pH
Resolution	0.001 pH
Working Condition	0-110°C

Reyocto OxyBLU CONNECT+

Product Description

The Reyocto OxyBLU CONNECT+ is an advanced IoT-enabled monitoring gateway designed for collecting, storing, and transmitting data from multiple industrial sensors. Supporting both 4–20 mA and RS485 Modbus sensors, CONNECT+ enables continuous remote monitoring of water quality and process parameters through cloud connectivity, SMS alerts, mobile applications, and web dashboards. With onboard data storage for up to one year, industrial IP65 enclosure, and flexible communication options, it provides a reliable solution for industrial automation, environmental monitoring, aquaculture, and water treatment applications.

Key Features

Supports both 4–20 mA and RS485 Modbus sensors.
Connects up to 4 sensor channels.
Configurable data logging intervals from 5 minutes to 24 hours.
Stores historical data for up to 1 year.
Remote monitoring through Mobile App and Web Portal.
SMS and GPRS (EDGE) communication.
Character LCD display for on-site monitoring.
Supports up to 5 SMS notification users.
Built-in relay output for automation.
6–7 hours battery backup during power failures.
Industrial IP65-rated enclosure.
Wall-mounted installation.
Data export using proprietary desktop software.
Custom-built for application-specific monitoring requirements.

Technical specifications

Sensor Connectivity:

4–20 mA Sensors: Up to 4 Channels
RS485 Modbus Sensors: Up to 4 Channels

Data Logging Interval:

5 Minutes – 24 Hours

Communication:

GSM/GPRS (2G)
SMS
EDGE (Mobile Application)

Storage Capacity:

Up to 1 Year (5 Sensors)

Relay Output:

1 Relay
NO Contact
7A @ 230 VAC / 30 VDC

SMS Contacts:

1–5 Users

Display:

Character LCD

Battery Backup:

6–7 Hours

Power Supply:

90 – 264 VAC

Terminal Connector Size:

Suitable for 1.0 – 2.5 mm² Conductors

Enclosure Dimensions:

150 × 150 × 100 mm
250 × 160 × 120 mm (Display Variant)

Protection Rating:

IP65

Installation Type:

Wall Mount

Cable Glands:

LAPP PG9

Ideal Applications

The Reyocto OxyBLU CONNECT+ is ideal for:

Water quality monitoring systems
Industrial IoT applications
Water treatment plants
Wastewater treatment plants
Aquaculture monitoring
Environmental monitoring
Remote sensor data logging
Industrial process monitoring
Smart agriculture
SCADA and automation systems
Multi-sensor remote monitoring solutions

Why Choose Reyocto OxyBLU?

AI-Driven Pond Intelligence

Advanced machine learning algorithms continuously analyze pond conditions to optimize dissolved oxygen levels and improve farming efficiency

Automated Aerator Management

Automatically controls aerators based on real-time water quality, reducing manual intervention and minimizing unnecessary energy consumption.

Complete Remote Monitoring

Access live pond data, alerts, historical reports, and system status anytime through cloud dashboards and mobile applications.

Industrial-Grade Reliability

Designed with rugged hardware, backup power, secure communication, and protective features for dependable field performance.

Supports Multiple Monitoring Applications

Suitable for aquaculture farms, water quality monitoring, industrial automation, environmental monitoring, and remote process management.

End-to-End Support from Reyocto

Receive genuine Reyocto solutions backed by technical expertise, implementation support, customization, and reliable after-sales service.

Ready to Reduce Pond Losses with Intelligent OxyBLU Solutions?

Struggling with fluctuating dissolved oxygen levels, high aeration costs, or manual pond management? Reyocto OxyBLU delivers AI-powered monitoring and automation to improve water quality, optimize energy usage, and maximize aquaculture productivity.

FAQ's

Frequently Asked Questions

What is Reyocto OxyBLU used for?

Reyocto OxyBLU is an AI-powered aquaculture monitoring system that continuously tracks water quality parameters, predicts dissolved oxygen demand, and automatically controls aerators. It helps improve pond health, reduce energy consumption, and increase overall aquaculture productivity.

What is the difference between OxyBLU and OxyBLU CONNECT+?

OxyBLU focuses on intelligent pond monitoring and automatic aerator control, while OxyBLU CONNECT+ functions as an industrial IoT gateway for collecting, storing, and transmitting sensor data to cloud platforms for remote monitoring and automation.

Which water quality parameters can OxyBLU monitor?

OxyBLU continuously monitors critical aquaculture parameters including dissolved oxygen (DO), DO saturation, pH, and water temperature. These measurements help farmers maintain optimal pond conditions for healthier aquatic life and improved production.

Can OxyBLU solutions be monitored remotely?

Yes. Both OxyBLU and OxyBLU CONNECT+ support remote monitoring through cloud connectivity, mobile applications, web dashboards, and SMS alerts, allowing users to access real-time data and receive instant notifications from anywhere.

Which industries can benefit from OxyBLU CONNECT+?

OxyBLU CONNECT+ is suitable for aquaculture, water treatment plants, wastewater treatment facilities, environmental monitoring, industrial process automation, smart agriculture, and any application requiring reliable remote sensor data logging and monitoring.

Why choose Reyocto for OxyBLU solutions?

Reyocto designs and manufactures intelligent IoT monitoring solutions backed by industry expertise, customization capabilities, cloud integration, technical support, and reliable after-sales service, helping customers implement smarter and more efficient monitoring systems.
